Rail Crack Detection
Rail Crack Detection
High-precision systems for detection of rail defects
Rail integrity is critical for the safety and performance of railway infrastructure.
ADTS offers two complementary systems for rail crack detection, addressing both internal flaws and surface-level defects with high precision and reliability:
- UT System – Ultrasonic Testing
- Crack Eddy – Surface Crack Detection System

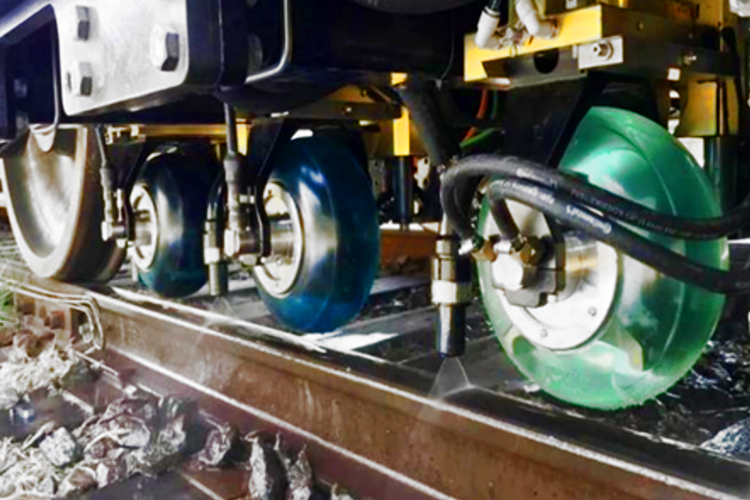

UT System – Ultrasonic Testing
A high-frequency ultrasonic inspection system for non-destructive detection of internal rail defects.
Installed onboard diagnostic vehicles, the UT System automatically identifies and localizes flaws such as:
Internal cracks
Inclusions and voids
Transverse and longitudinal defects
The system uses ultrasonic probes positioned on the rail surface to send and receive signals, analyzing wave reflections to map internal discontinuities. Suitable for preventive maintenance and in-service inspections, even at operational speeds.

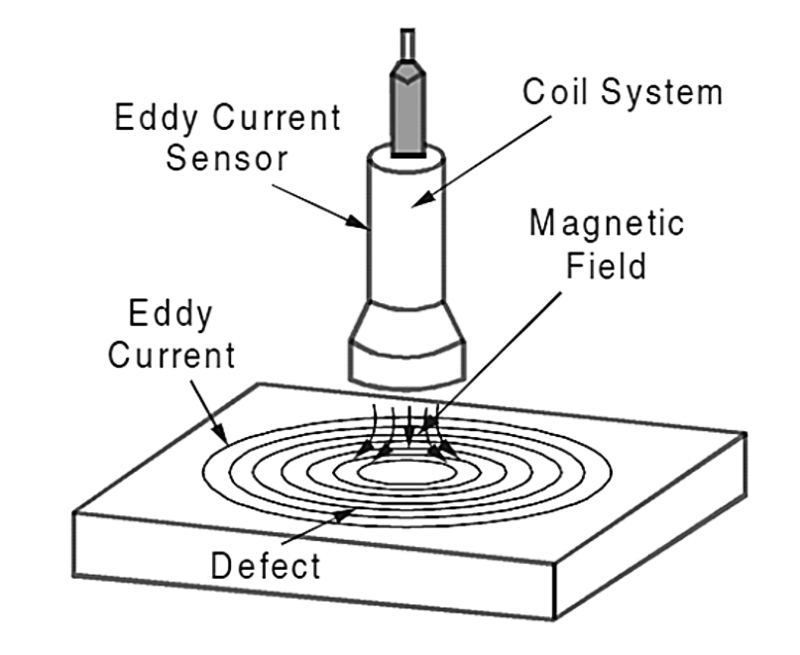

Crack Eddy – Surface Crack Detection System
The Crack Eddy system operates using eddy current technology, enabling non-contact detection of surface and near-surface defects within the top 5 mm of the rail.
Sensors generate a circular magnetic field that reacts to variations in material properties, allowing identification of cracks and discontinuities with high sensitivity and precision.
This makes Crack Eddy ideal for detecting:
- Surface fatigue cracks
- Head checking
- Shallow sub-surface anomalies
