Rail Profiling
Rail Profiling
High-Precision Rail Profile scan for Inspection and Grinding Operations

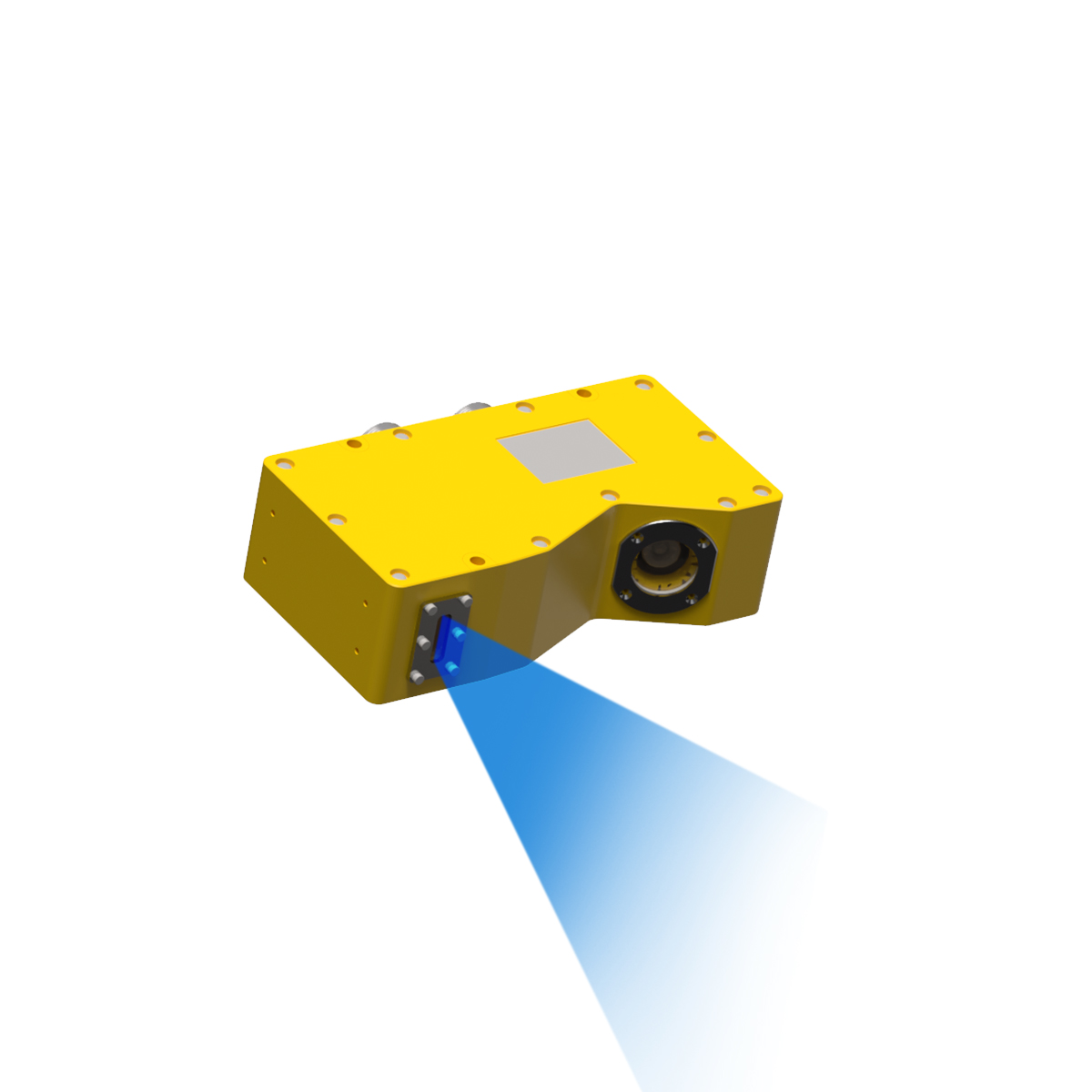

Rail Profile (RPMS)
The Rail Profile Measurement System is an optical diagnostic solution for high-precision, non-contact rail profile detection.
Easily mountable on virtually any type of vehicle and orientable toward the target, it is suitable for both rail wear inspections, integration on grinding machines or third rail detection and measuring.
Performances
| Max Speed | Up to 350 fps |
| Accuracy | ± 0,1 mm |
| Laser Class | 3B, 450 nm +3B, 405 nm (FRP only) |
| Operating temperature | -20°C / + 60°C Optional extension to EN 50155 |
| Measuring Speed | Max operational speed |

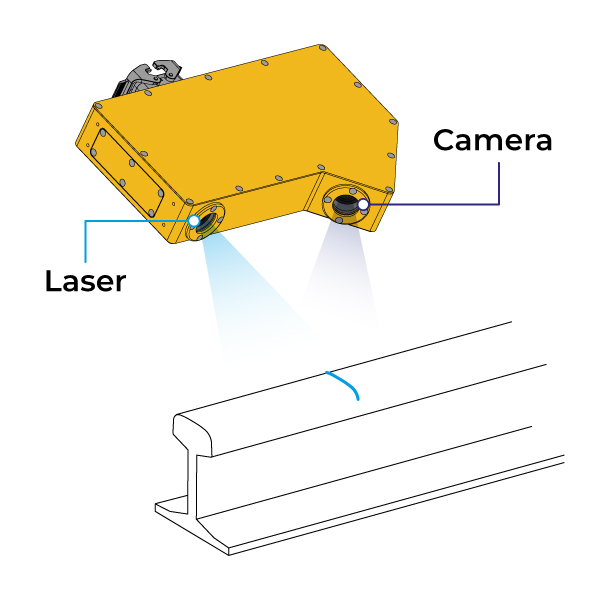

How it works

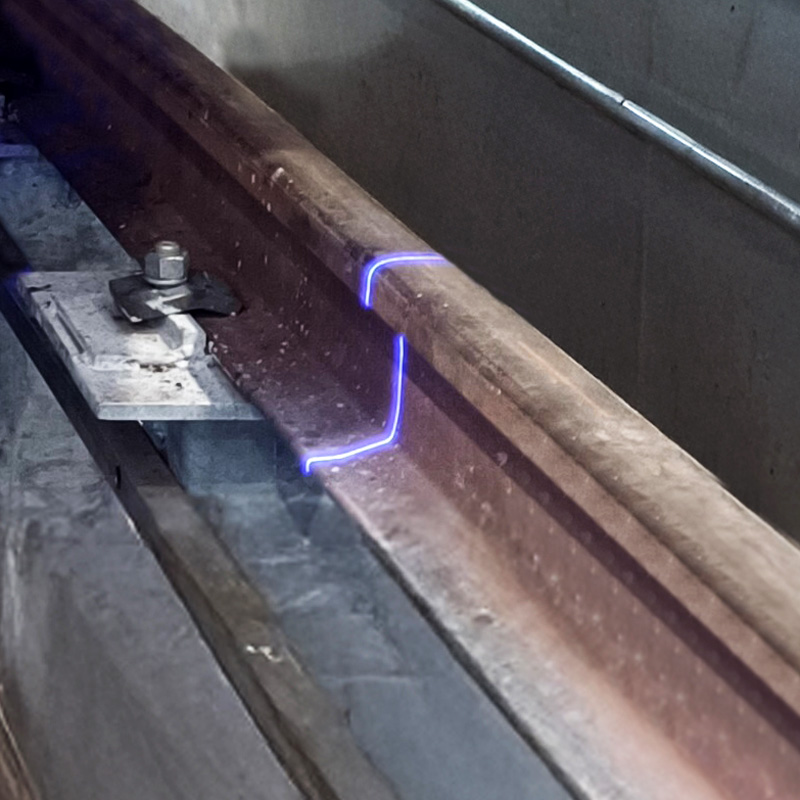

- A laser projects a line onto the rail while the camera captures the rail profile continuously along the track.

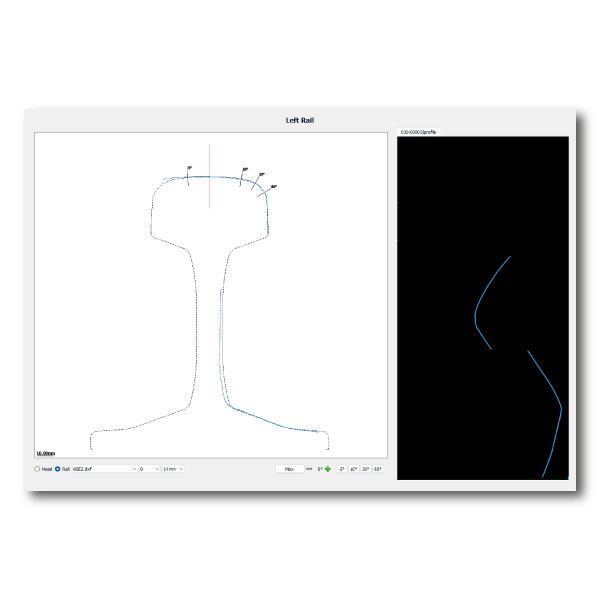

- The software acquires the RAW image and isolates the rail profile.

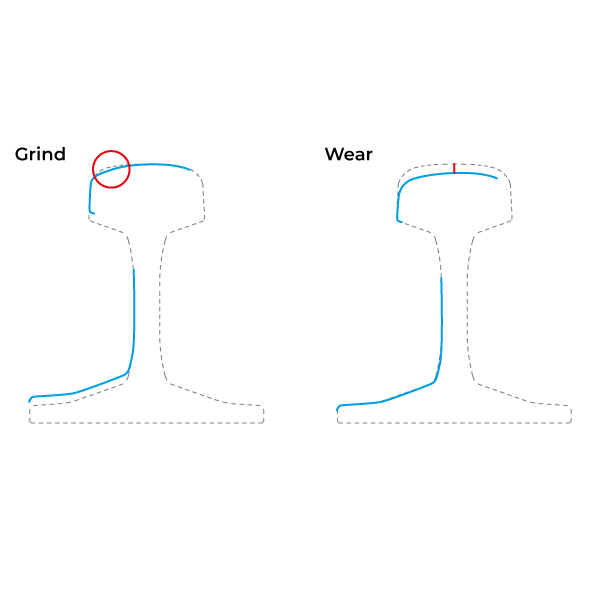

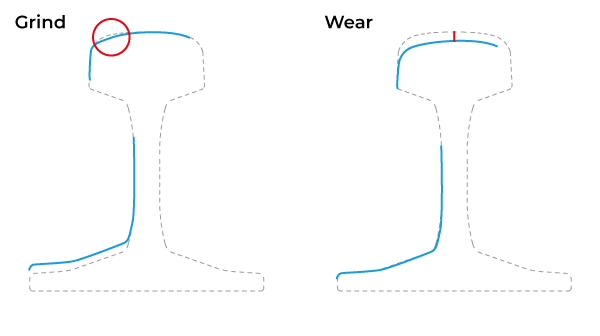

- The RAW profile is processed and compared to the reference profile:
- The grind method, where the acquire profile is aligned on the upper and inner part of the rail head, optimizes material removal in the areas targeted for grinding.
- The wear method, which aligns the profile on the web and foot, enables accurate rail wear analysis.
Models

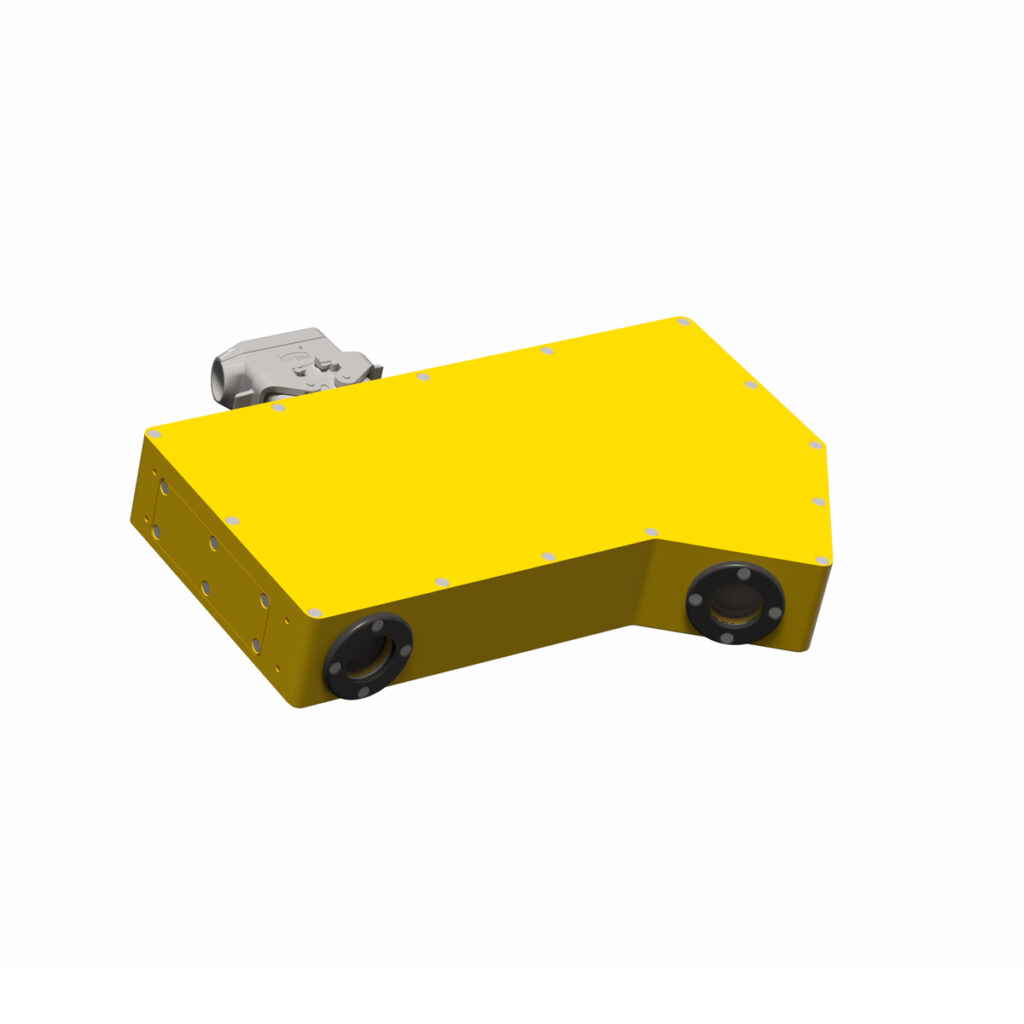

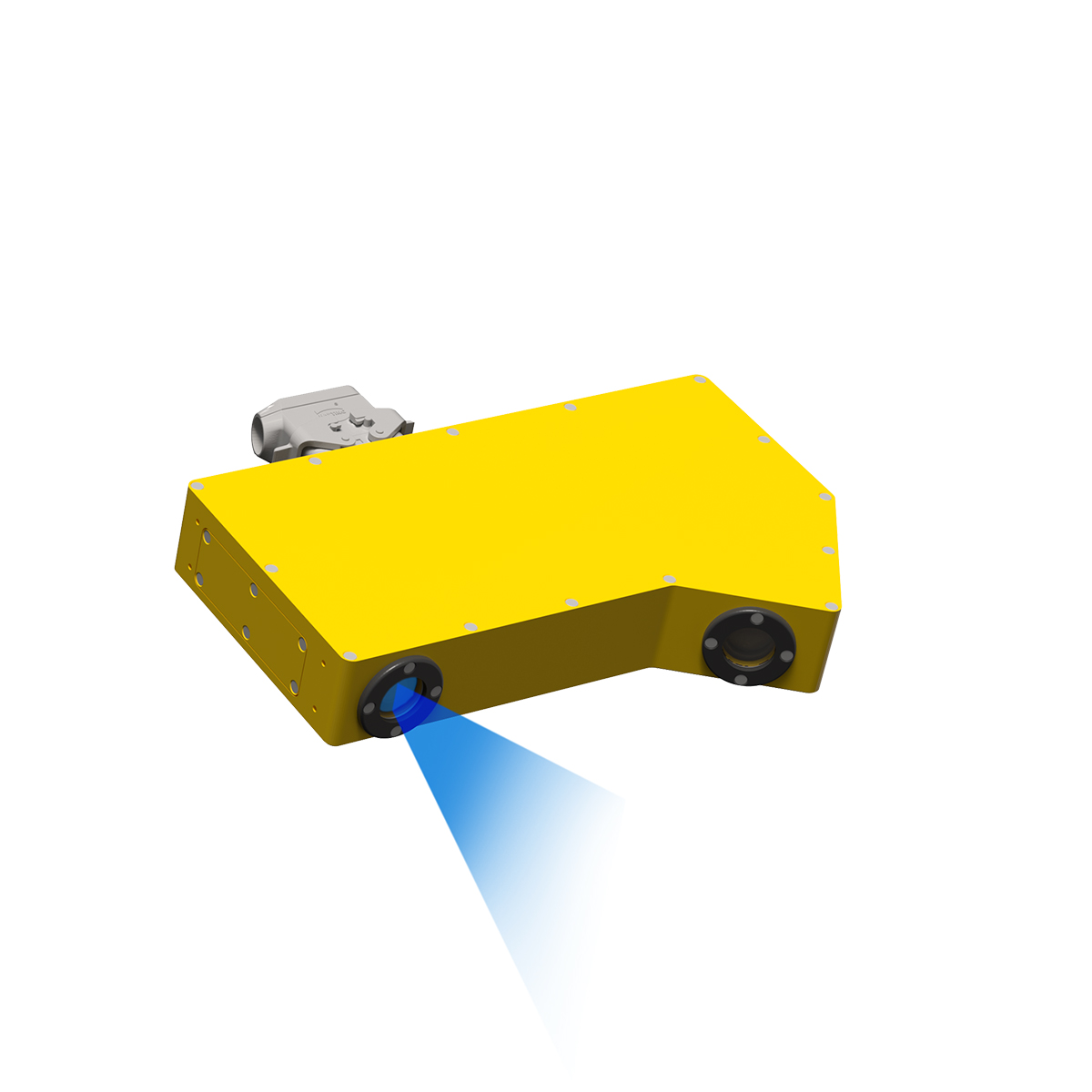

RP - Rail Profile
High-precision device for rail profile detection, featuring laser and camera technology; ideal for wear assessment and geometry monitoring.

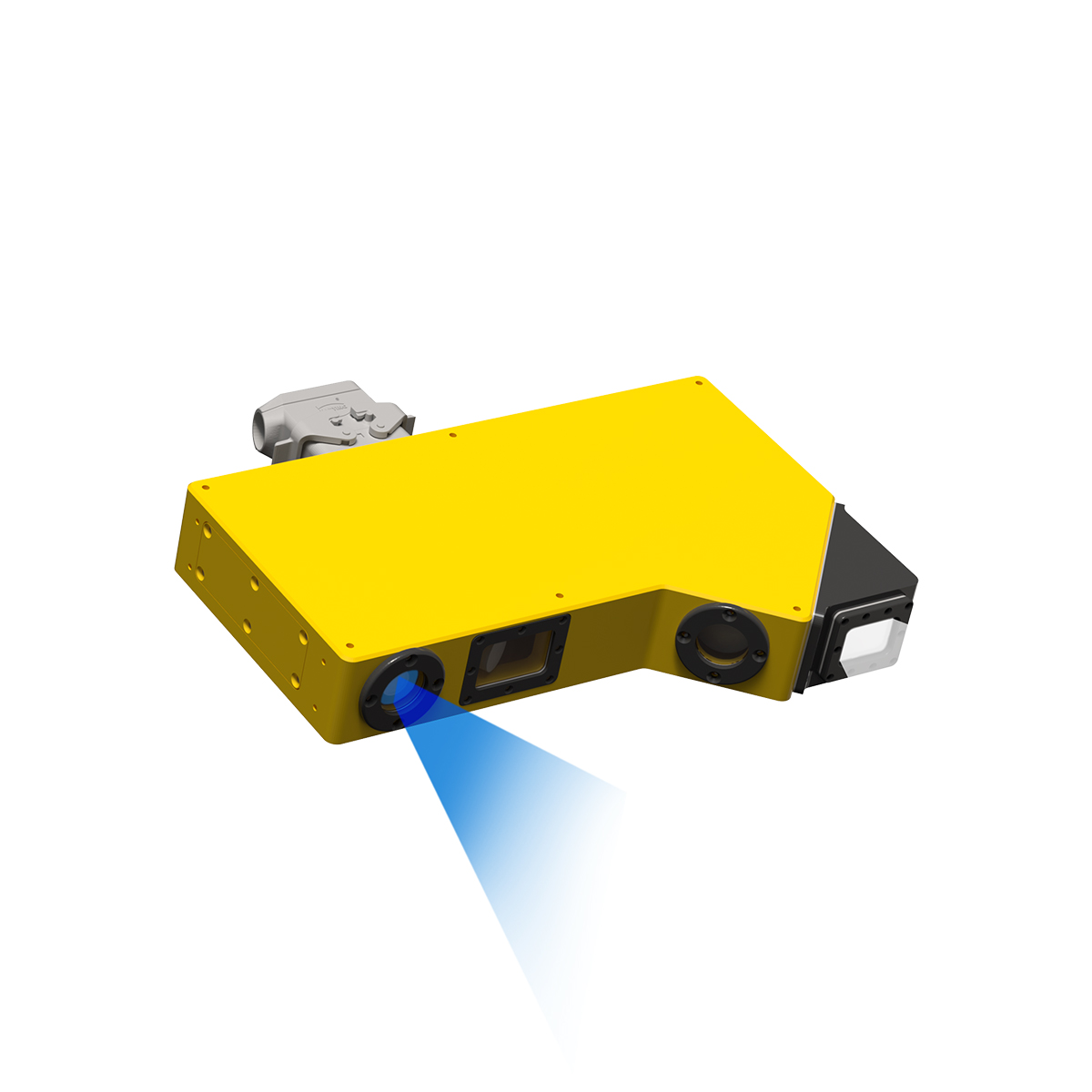

RPV - Rail Profile Vision
Rail profile device with add-on camera and lighting module for visual inspection and rail surface image capture.

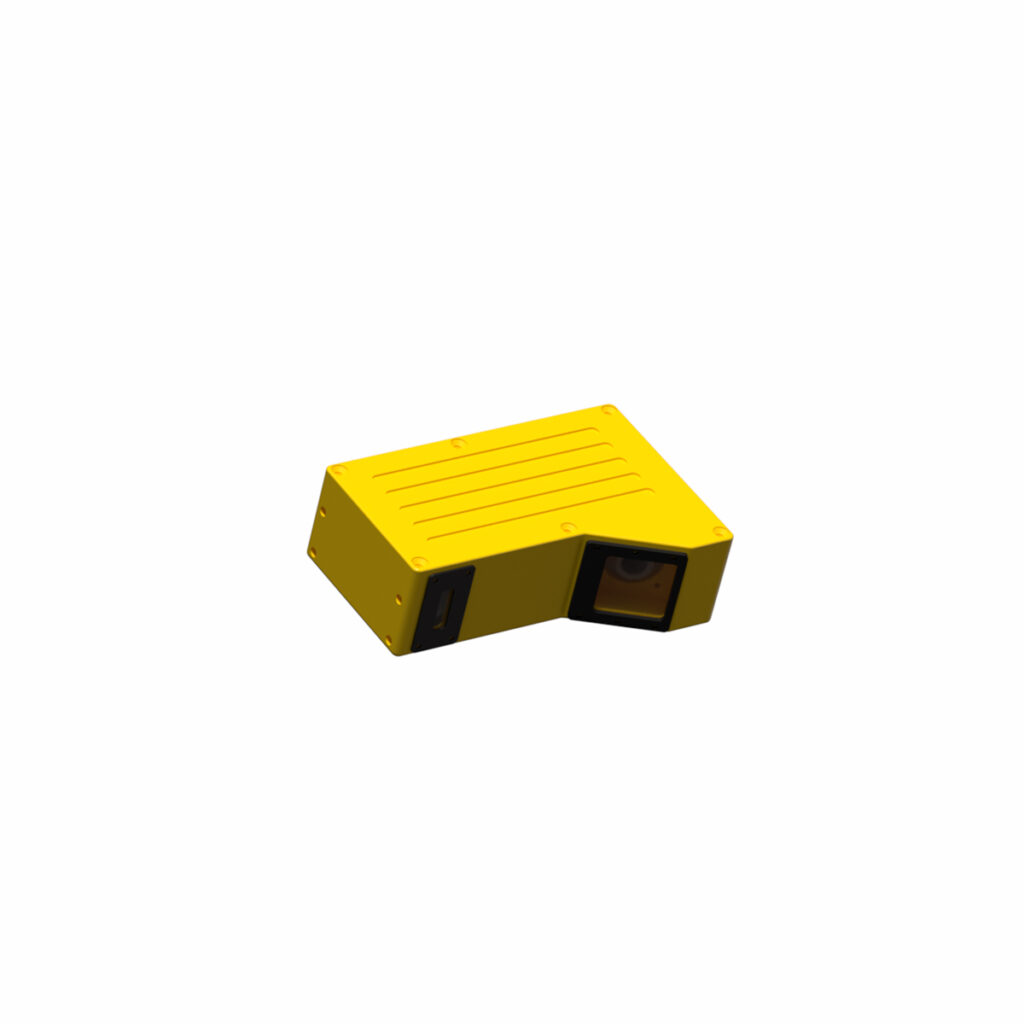

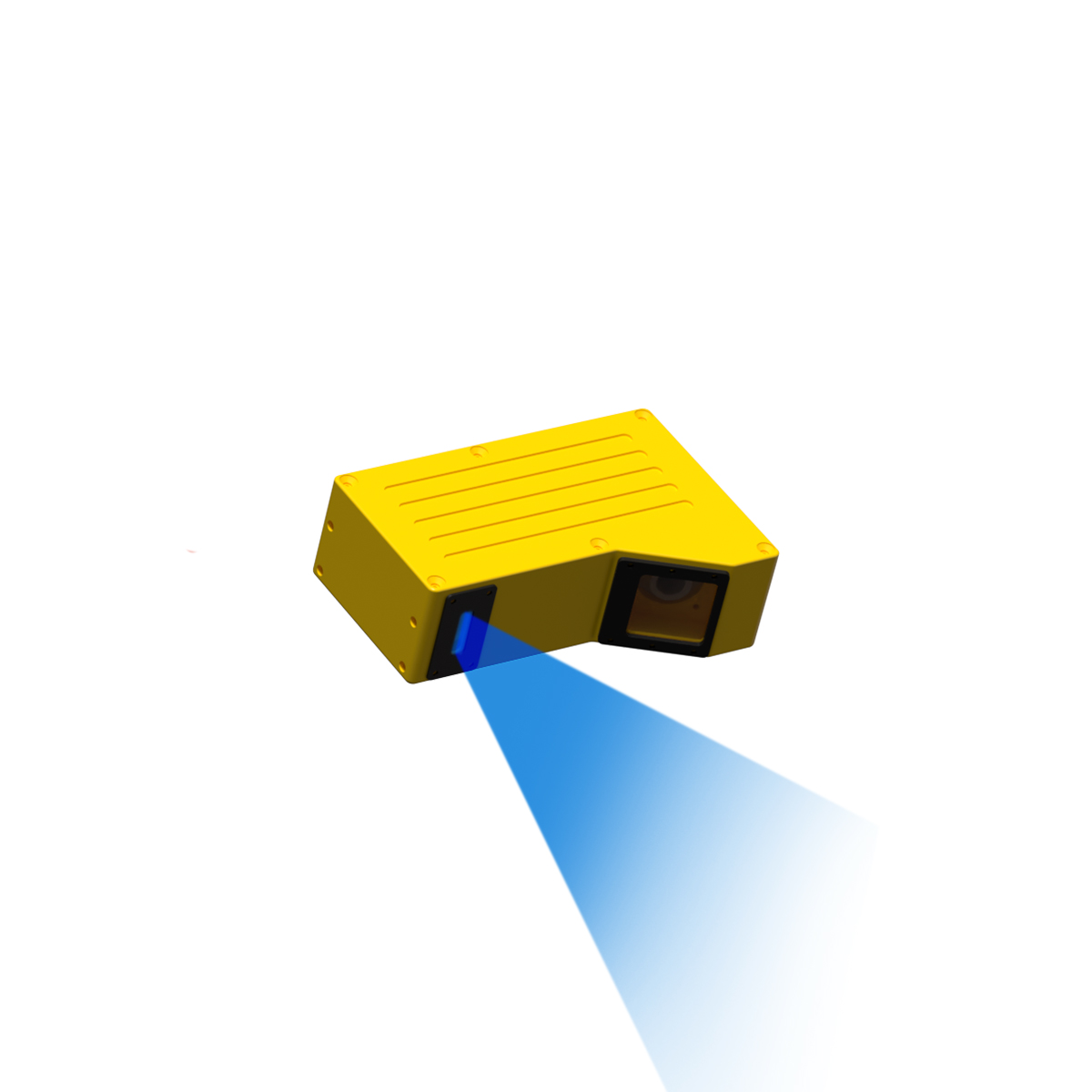

3rd Rail Profile
Measures the third rail.

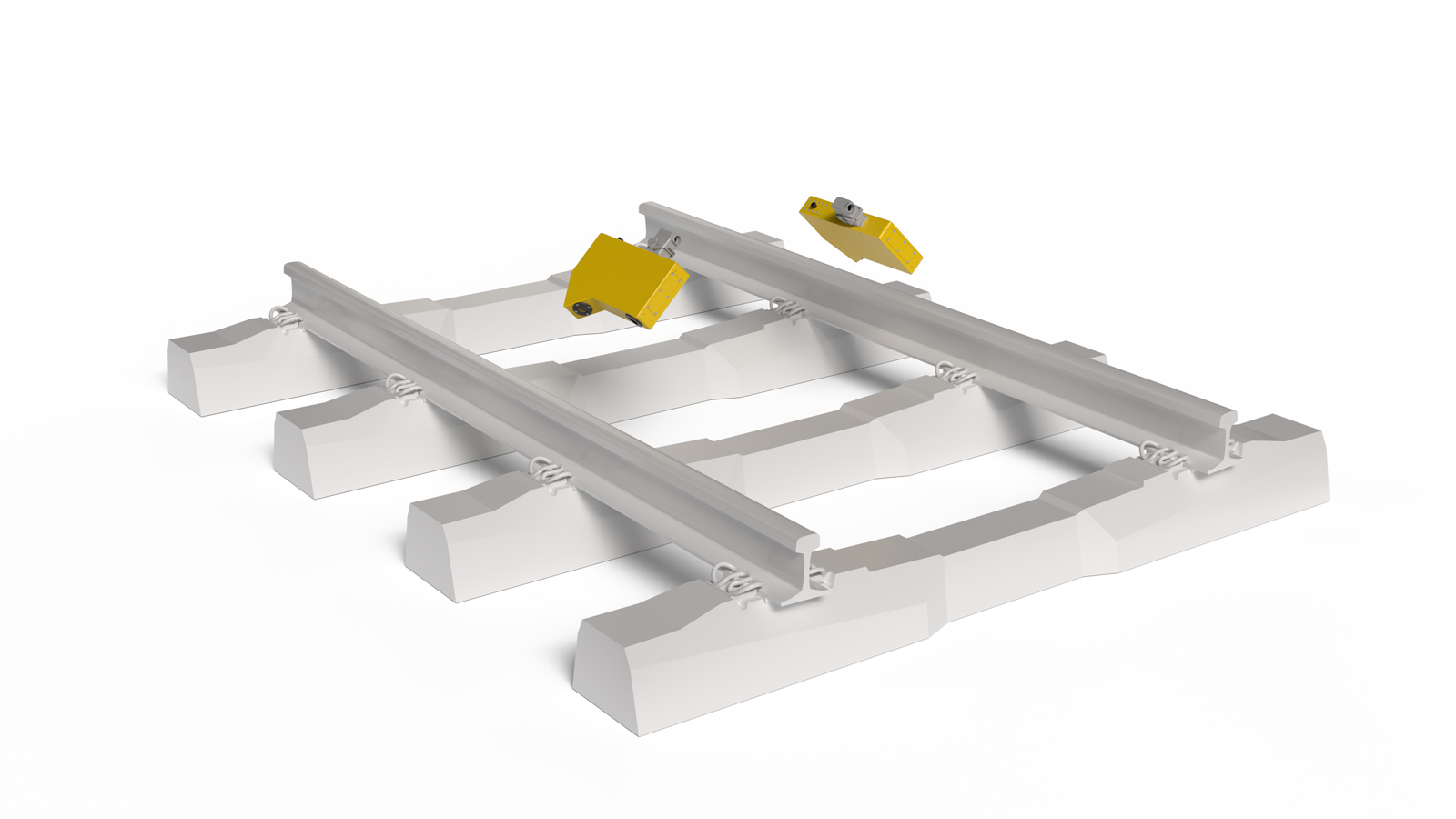

Configurations
Rail Profile
Devices:
- 2 x RP (or RPV)
Applications:
- Grinding operations
- Inner Profile inspection
- Track Monitoring & Geometry

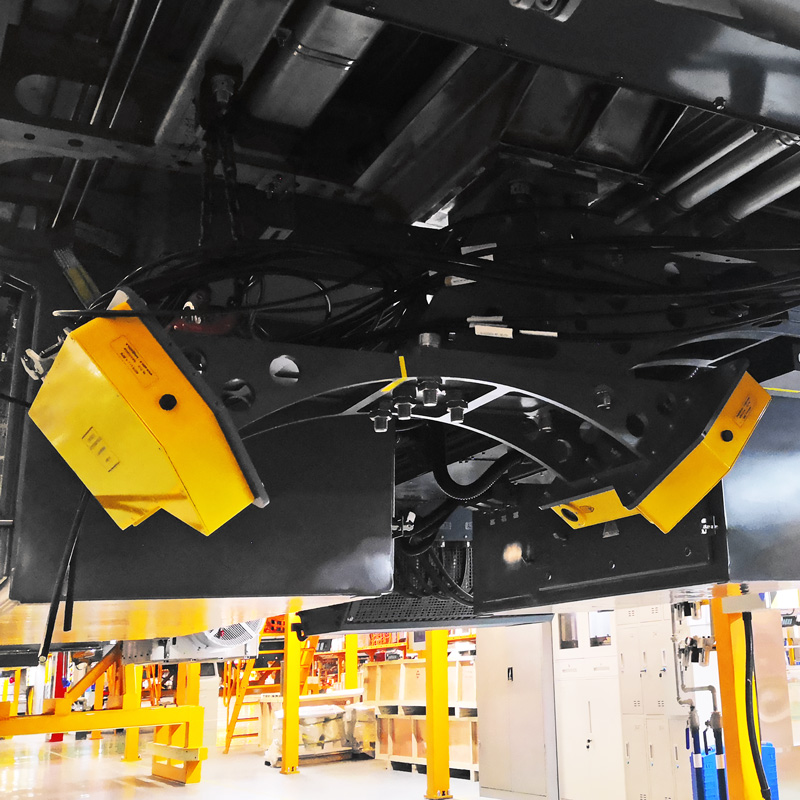

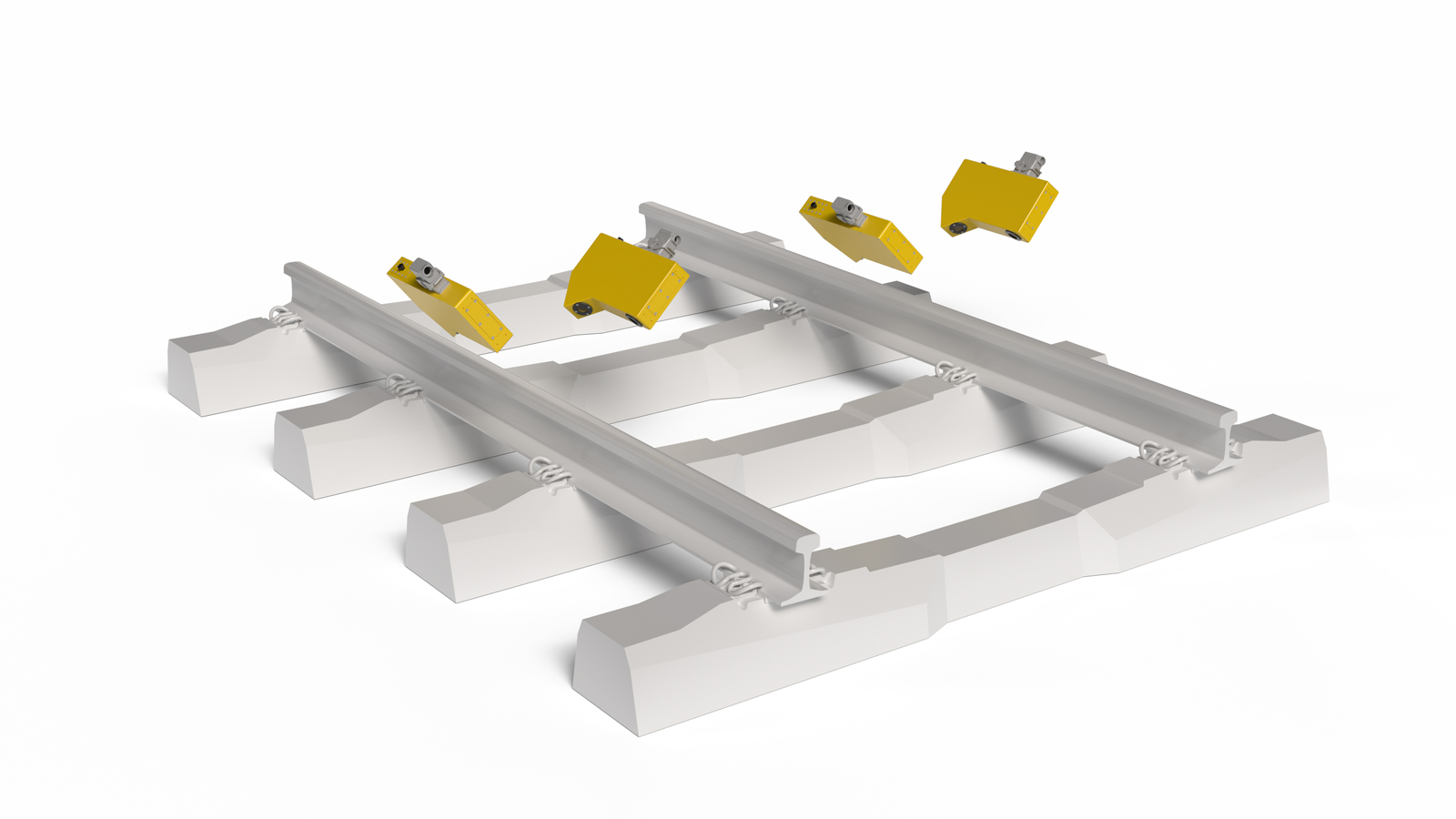

Full Rail
Devices:
- 4 x RP (or RPV)
Applications:
- Grinding operations
- Full Profile inspection
- Track Monitoring & Geometry

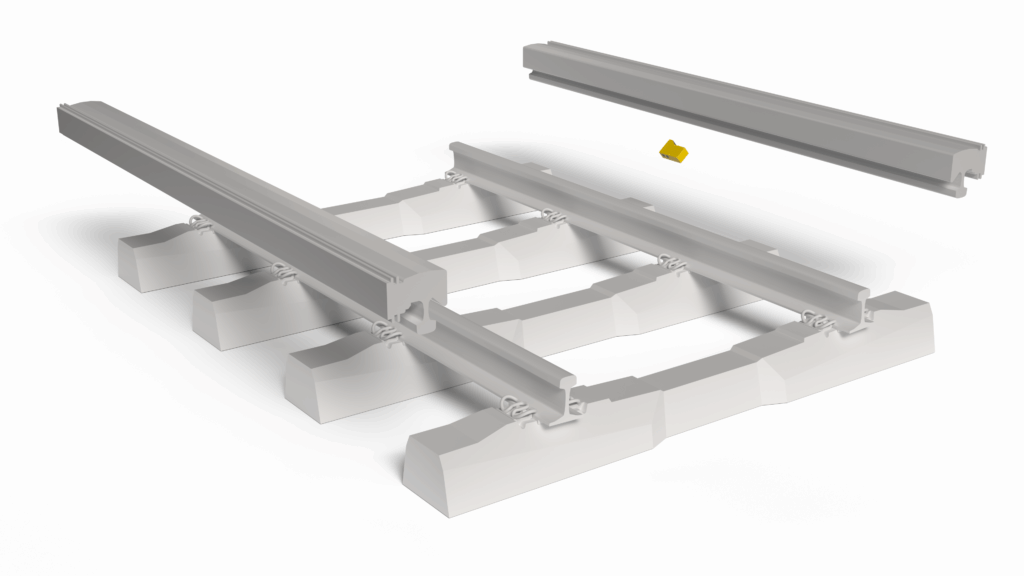

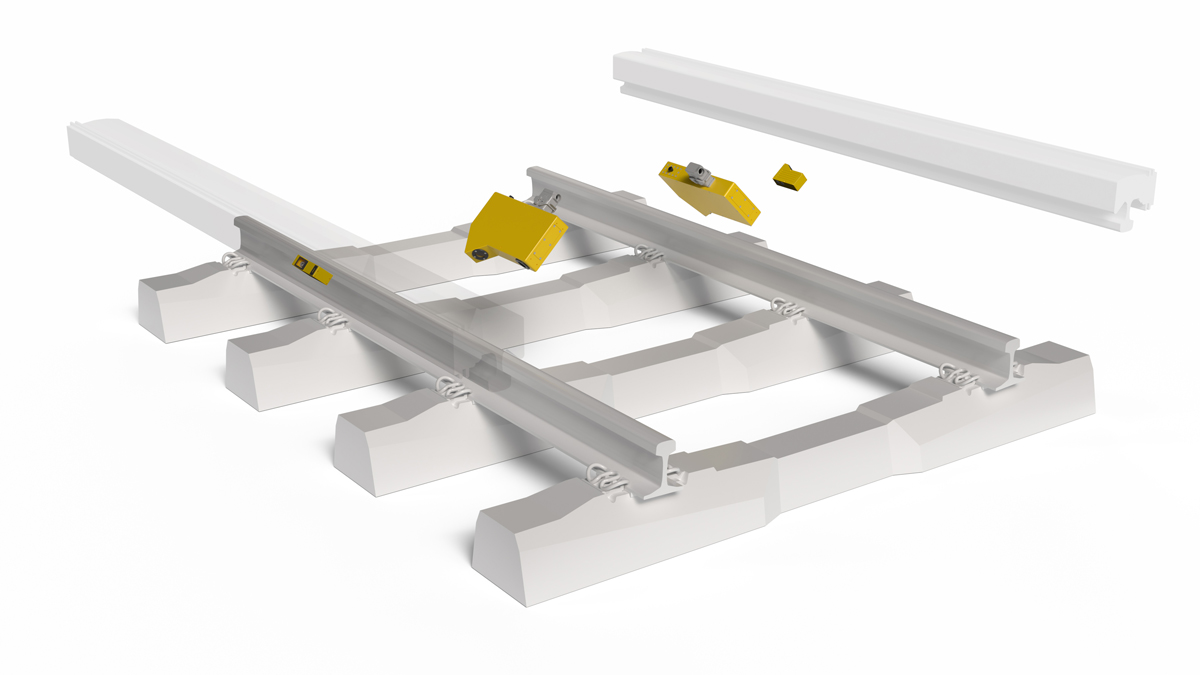

Third Rail
Devices:
- 2 x 3RD Rail
Applications:
- Third Rail detection & measuring
